Stencil
E.g.1: create a mask
java
@SubscribeEvent
public static void onRenderGameOverlay(RenderGameOverlayEvent event)
{
if (!Minecraft.getMinecraft().getFramebuffer().isStencilEnabled())
Minecraft.getMinecraft().getFramebuffer().enableStencil();
GlStateManager.disableTexture2D();
GlStateManager.disableCull();
GL11.glEnable(GL11.GL_STENCIL_TEST);
// can be 0 to 255 (typically when using D24S8)
int stencilValue = 1;
// disable depth mask for now cuz we don't want stencil area to pollute depth bits
GlStateManager.depthMask(false);
GlStateManager.colorMask(false, false, false, false);
// stencil controller: stencilFunc + stencilOp
GL11.glStencilFunc(GL11.GL_ALWAYS, stencilValue, 0xFF);
GL11.glStencilOp(GL11.GL_REPLACE, GL11.GL_REPLACE, GL11.GL_REPLACE);
// mask area: turn on all 8 bits for write access
GL11.glStencilMask(0xFF);
int x = 0, y = 0, width = 20, height = 20;
GL11.glBegin(GL11.GL_QUADS);
GL11.glVertex2f(x, y);
GL11.glVertex2f(x + width, y);
GL11.glVertex2f(x + width, y + height);
GL11.glVertex2f(x, y + height);
GL11.glEnd();
// turn off all 8 bits
GL11.glStencilMask(0x00);
// stencil bits have now been written to the attachment
// we'll use these bits to control the later UI rendering
GlStateManager.depthMask(true);
GlStateManager.colorMask(true, true, true, true);
// i'll change this line for the next example
GL11.glStencilFunc(GL11.GL_EQUAL, stencilValue, 0xFF);
GL11.glStencilOp(GL11.GL_KEEP, GL11.GL_KEEP, GL11.GL_KEEP);
GlStateManager.enableTexture2D();
GlStateManager.enableCull();
// draw
Minecraft.getMinecraft().fontRenderer.drawString("ABCDEF", 0, 0, Color.GREEN.getRGB());
GL11.glDisable(GL11.GL_STENCIL_TEST);
}

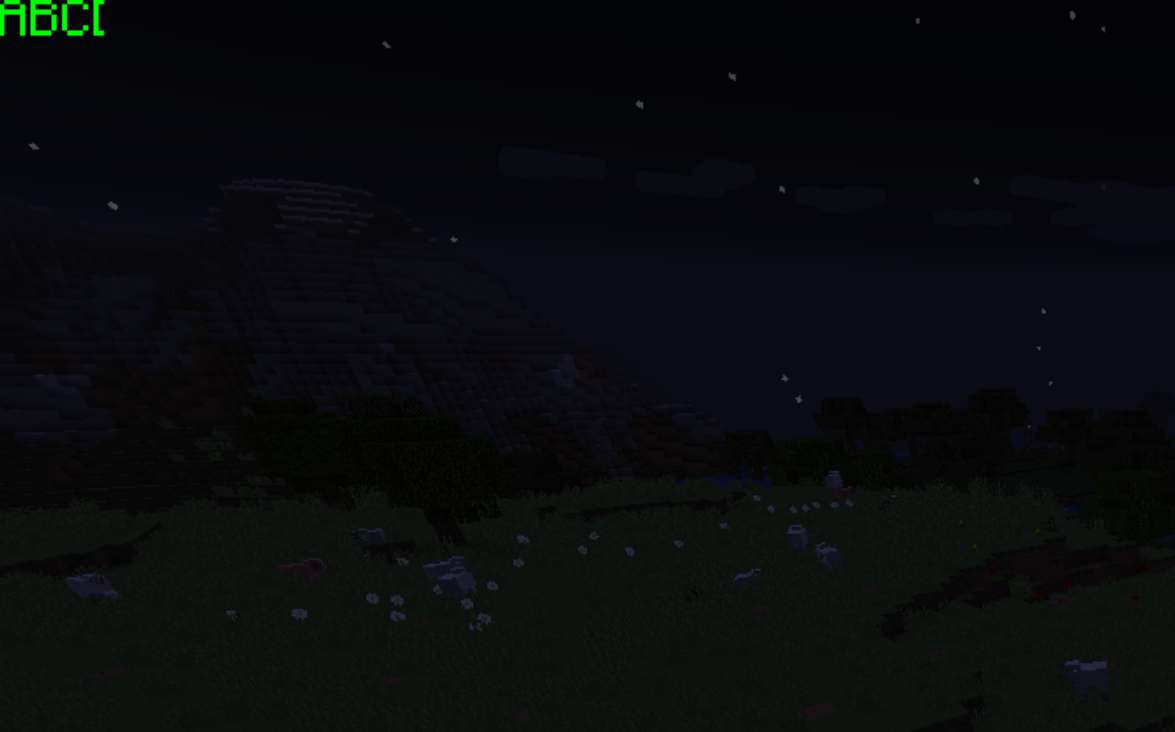

- This is an example of masking a text to a 20x20 area
Notice: The framebuffer you are using must support stencil (a
D24S8format depth attachment is usually wanted), and it also explains why a dedicated framebuffer is preferred for UI elements.
E.g.2: Change mask behavior
How do we change the behavior of a mask?
java
GL11.glStencilFunc(GL11.GL_NOTEQUAL, stencilValue, 0xFF);

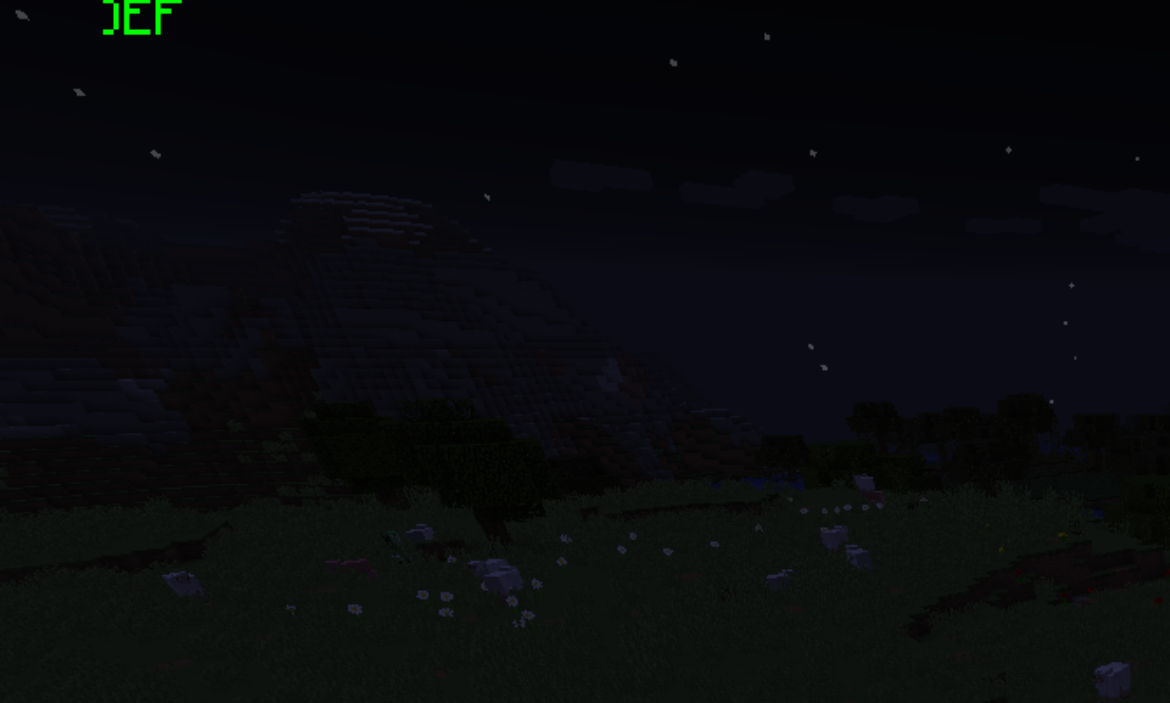

- This is how
glStencilFuncworks so we get an anti-masked text
All you can do with stencil is playing with
stencilFunc + stencilOpand also stencil bits manipulations.
E.g.3: Nested masks
Here's an example of creating a stencil system that supports nested masks.
java
public final class RenderMask
{
private static final Stack<RenderMask> maskStack = new Stack<>();
private static int stencilValueCounter = 1;
private static int nextStencilValue()
{
stencilValueCounter++;
if (stencilValueCounter > 254)
{
stencilValueCounter = 2;
GL11.glClearStencil(0);
GL11.glClear(GL11.GL_STENCIL_BUFFER_BIT);
}
return stencilValueCounter;
}
public static void resetStencil()
{
GL11.glClearStencil(0);
GL11.glClear(GL11.GL_STENCIL_BUFFER_BIT);
stencilValueCounter = 1;
}
public enum MaskShape
{
RECT,
ROUNDED_RECT,
CUSTOM
}
public MaskShape maskShape;
private final Map<MaskShape, Boolean> init = new HashMap<>();
private final int stencilValue;
private float x;
private float y;
private float width;
private float height;
private float radius;
private Action drawMask;
public RenderMask(MaskShape maskShape)
{
this.maskShape = maskShape;
init.put(MaskShape.RECT, false);
init.put(MaskShape.ROUNDED_RECT, false);
init.put(MaskShape.CUSTOM, false);
stencilValue = nextStencilValue();
}
public void setRectMask(float x, float y, float width, float height)
{
init.put(MaskShape.RECT, true);
this.x = x;
this.y = y;
this.width = width;
this.height = height;
}
public void setRoundedRectMask(float x, float y, float width, float height, float radius)
{
init.put(MaskShape.ROUNDED_RECT, true);
this.x = x;
this.y = y;
this.width = width;
this.height = height;
this.radius = radius;
}
public void setCustomMask(Action drawMask)
{
init.put(MaskShape.CUSTOM, true);
this.drawMask = drawMask;
}
private static void drawStencilArea(RenderMask mask)
{
switch (mask.maskShape)
{
case RECT ->
{
if (mask.init.get(MaskShape.RECT))
RenderUtils.drawRectStencilArea(mask.x, mask.y, mask.width, mask.height);
}
case ROUNDED_RECT ->
{
if (mask.init.get(MaskShape.ROUNDED_RECT))
RenderUtils.drawRoundedRectStencilArea(mask.x, mask.y, mask.width, mask.height, mask.radius);
}
case CUSTOM ->
{
if (mask.init.get(MaskShape.CUSTOM))
if (mask.drawMask != null)
mask.drawMask.invoke();
}
}
}
public void startMasking()
{
if (maskStack.isEmpty())
maskStack.push(this);
else if (maskStack.peek() != this)
maskStack.push(this);
RenderUtils.prepareStencilToWrite(stencilValue);
drawStencilArea(this);
if (maskStack.size() > 1)
{
ListIterator<RenderMask> iterator = maskStack.listIterator(maskStack.size());
iterator.previous();
while (iterator.hasPrevious())
{
RenderMask prevMask = iterator.previous();
RenderUtils.prepareStencilToIncrease(stencilValue);
drawStencilArea(prevMask);
RenderUtils.prepareStencilToZero(stencilValue);
drawStencilArea(this);
RenderUtils.prepareStencilToDecrease(stencilValue + 1);
drawStencilArea(this);
}
}
RenderUtils.prepareStencilToRender(stencilValue);
}
public static void endMasking()
{
RenderUtils.endStencil();
maskStack.pop();
if (!maskStack.isEmpty())
maskStack.peek().startMasking();
}
}Usage:
java
RenderMask a;
RenderMask b;
a.startMasking();
b.startMasking();
// draw
b.endMasking();
a.endMasking();This code snippet doesn't aim to work like an ultimate masking solution, but startMasking & endMasking do explain how we can play with stencil bits to get sophisticated effects.
