Rotate a plane
Notice: all GL states are being handled implicitly.
int x = 10, y = 10, width = 20, height = 20;
Tessellator tessellator = Tessellator.getInstance();
BufferBuilder bufferbuilder = tessellator.getBuffer();
bufferbuilder.begin(GL11.GL_QUADS, DefaultVertexFormats.POSITION);
bufferbuilder.pos(x, y, 0).endVertex();
bufferbuilder.pos(x, y + height, 0).endVertex();
bufferbuilder.pos(x + width, y + height, 0).endVertex();
bufferbuilder.pos(x + width, y, 0).endVertex();
GlStateManager.pushMatrix();
GlStateManager.rotate(45f, 1, 1, 0);
tessellator.draw();
GlStateManager.popMatrix();

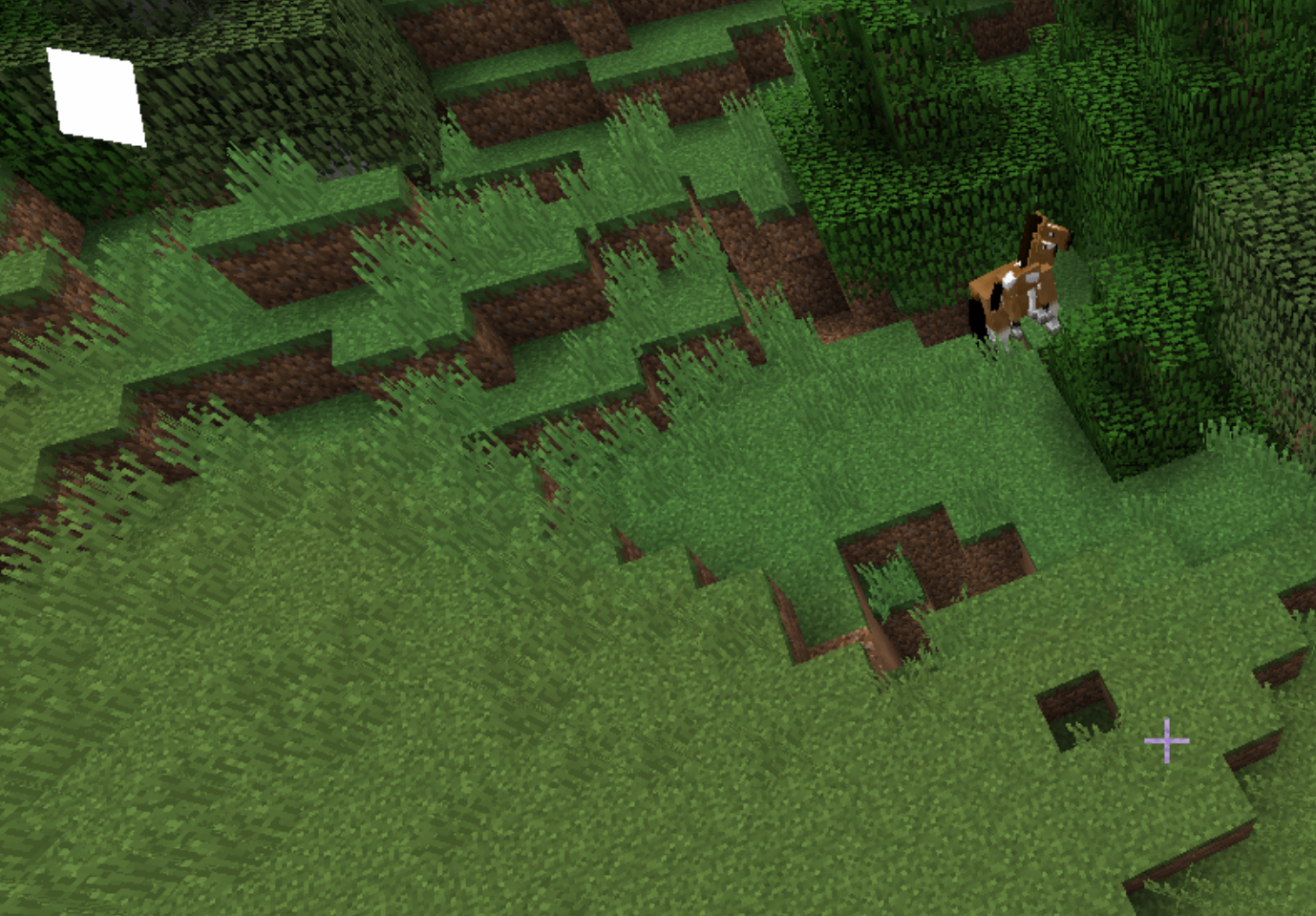

- A transformed plane is being rendered
When it comes to quaternion, it's actually equivalent to do so
GlStateManager.rotate(new Quaternion(
(float)Math.sin(Math.PI / 4d / 2d) / (float)Math.sqrt(2),
(float)Math.sin(Math.PI / 4d / 2d) / (float)Math.sqrt(2),
0f,
(float)Math.cos(Math.PI / 4d / 4d)));Intro to Quaternion
Quaternion q = [w, u] where w ∈ ℝ and u ∈ ℝ^3 which is a vector
equivalently, we write
q = w + a i + b j + c k where w, a, b, c ∈ ℝ, and i, j, k are imaginary numbers
where
| * |
| = |
|
and yeah u = (a, b, c)^T
When u is our rotation axis and θ is our rotation angle (in radian), we write that quaternion q = [cos θ/2, normalized u * sin θ/2]
How It Works
Let's say we have a point p = (x0, y0, z0)^T and define q = [cos θ/2, normalized u * sin θ/2]
Consider P = [0, p]
Then P' = [0，p'] = q P q^-1 = q P q* where p' is the rotated point
= [cos θ/2, normalized u sin θ/2] [0, p] [cos θ/2, - normalized u sin θ/2]
We can treat them as imaginary numbers and do the multiplication, or use Hamilton product.
